VIS-T PRO GEN 3
FEATURES
-
Replacement OEM stock Triumph instrument (Speedo & Tachometer) for classic models liquid cool year 2016+
-
Easy to install (Plug n play).
-
Use info ( i ) button on handle bar for control VIS-T. (Fuel level, TC on/off, ABS on/off & ride mode.)
-
Support ON-OFF ABS & Traction control. *Depended on model.
-
Support Mode : Road , Rain , Sport / Off-road. *Depended on model.
-
Build-in flasher relay with speed flash adjust. *Support 5w-40w
-
Build-in heat-grip operate with step power. *Support up to 50w **OEM Heated grip support.
-
Speed / RPM with 5 volts digital pulse output / support 12volt signal with external resistor.
-
Oil pressure & neutral indicator (Ground).
-
Turn & high beam indicator (Drive +12v).
-
Fuel level voltage feeder. 0-5 Volts with adjustable empty / full fuel level. *Software adjust / teach.
-
Customize AUX 1-6 output for specific indicator. With selectable drive +12v / ground.
-
AUX channels / indicator current drive up to 250 mA with short protection.
-
+12 volts (direct positive battery) / +12 volts ignition key output with integrated resettable fuse (Max 1 amp).
-
Turn flasher and Heated grip short protect instant / self reset.
-
Hazard lights can continue operate while ignition key is OFF.
-
Support third party or universal speedo / tachometer (such as : Motogadget, ACEWELL, KOSO, Daytona)
SPECIFICATIONS
-
Dimension 25 x 45 x 50 mm. (W x L x H).
-
Weight ~ 50 grams.
-
Waterproof design.
-
Operating temperatures range ( -20 to +65 C° ambient ) (MAX -20 to +105 C°)
-
Supply voltage operate 8 - 18 Volt.
INDICATOR LIGHT
-
Oil / Engine indicator
Oil pressure warning / Engine warning light.
-
Turn indicator
Turn / Low fuel.
-
Neutral indicator
Neutral gear / Side-stand.
-
H-Beam indicator
High beam / High coolant temperature warning / Heat grip level indicator.
** NOTE ** Indicator can change indicate in software.
SPECIAL FUNCTION
-
Riding MODE, Traction & ABS ON-OFF memory (Last setting / OEM setting).
-
Fuel level. ( Display via instrument speed & rpm ) *Display via speed / RPM setting in software.
-
6 AUX Output driver.
Customization to ABS indicator, Traction control indicator, Gear position indicator, RPM +Shift light,
Speed, Cruise controls signal indicator, Mode ridding indicator, Heat grip level, Side stand,
Temperature warning, Fuel level indicator, Low fuel, Binary bit for fuel level / heat grip / gear position and etc..
-
Build-in Diagnostic Clear engine code function.

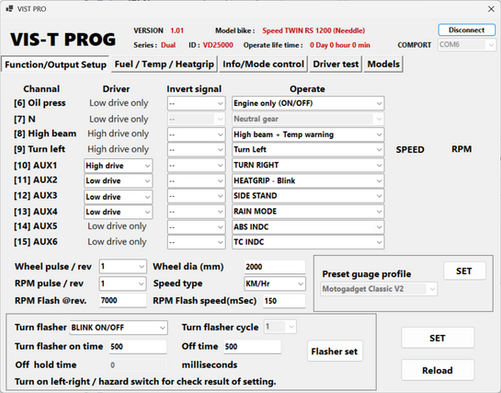

Windows software support.
-
Adjustable wheel circular & Pulse / Rev. Include engine RPM pulse / Rev. (Match signal on gauge setting.)
-
Customize indicator display.
-
AUX output setting.
-
Turn flasher speed adjust. [ 2 mode - 1.Standard flasher 2.Rapid flash cycle ]
-
Oil pressure switch reading sensor value / adjust detect level signal.
-
Heat grip step operate OFF to 4 steps with level power adjust.
-
Fuel voltage feeder adjustment with signal test.
-
Low fuel %level warning adjustment.
-
High temperature coolant warning adjustment.
-
Self test Speed, RPM, Oil, Turn, Neutral, H-Beam and AUX output signal.
-
Fine tune high precision Speed / RPM signal.
-
Select models bike operate.
Profile operate preset.
-
Motogadget Chrono classic V1 / Tiny.
-
Motogadget motoscope mini & motosign mini.
-
Motogadget motoscope PRO. **NOT require Break out box.**
-
Motogadget Chrono classic V2. **NOT require Break out box.**
-
ACEWELL CV-080. (Full feature / All indicator support).
-
Universal / custom manual.
Models support available.
☆ Dual Series ☆
- Street cup EU4
- T100 (2016-2020) EU4
- T100 (2021-2024) EU5
- T120 (2016-2020) EU4
- T120 (2021-2024) EU5
- T120 BLACK (2021-2024) EU5
- T120 BLACK (2025) EU5 ** Model A.
- T120 BLACK (2025) EU5 ** Model B.
- Thruxton EU4
- Thruxton R EU4
- Thruxton RS EU5
- Speed twin (2018-2020) EU4
- Speed twin (2021-2024) EU5
☆ Single Series ☆
- Street Twin (2016-2018) EU4 * Nissin brake
- Street Twin (2019-2020) EU4 * Brembo brake
- Street Twin (2021-2023) EU5
- Speed Twin 900 (2022-2024) EU5 (Needle gauge)
- Street scrambler (2016-2018) EU4 * Nissin brake
- Street scrambler (2019-2020) EU4 * Brembo brake
- Street scrambler (2021-2023) EU5
- Scrambler 900 (2022-2024) EU5
- Bobber (2016-2020) EU4
- Bobber Black (2017-2020) EU4
- Bobber (2021-2024) EU5 / (2025) EU5 ** Model A.
- Bobber (2025) EU5 **Model B
** How identify model 2021 (EURO 5) looking for SAI valve. Locate under gas tank.
** Euro5 Model have 3 tri color ECU connector.
** Euro4 Model have 2 black ECU connector.
** Euro4 Model 2016-2020 don't have SAI valve.
** Street Twin & Street scrambler years 2018-2019 is a cross models.
Define by front brake caliper is Nissin or Brembo.
Models not support:
- Speed Master All models years.
- T100 (2025) EU5 Model B.
- T120 (2025) EU5 Model B.
- All special models (TFC bike.) (Limited numbered bike).
- TFT display. Speed twin 900 (2025) / Speed twin 1200 RS (2025).
Price $499 / Unit.
*Not include shipping cost.
*Not include Import Duty, TAX and GST/VAT applicable in your country.
*Not include payment fee.
How to order.
Contact email to order only.
Required VIN number to check your correct model bike.
Shipping cost calculated based on country.
FedEx or UPS as buyer requested.
Payment link accept Debit & Credit card.
VIS-T BOX-SET include.
1. VIS-T x 1 unit.
2. USB tools + 1.5 meter data wire.
3. Power battery clamp x 2.
4. Quick user card.
☆ One-year life time warranty. (The conditions are as specified.)
